Overview

The W-Corrugation Forming Machine—also known as a W-beader or W-type corrugator—is specialized metal-forming equipment designed to create "W"-shaped corrugations or reinforcing ribs on the bodies of steel drums. As a core component of the steel drum production line, it employs a rolling process after the drum body has been welded to form distinct W-shaped ribs at both ends, thereby significantly enhancing the drum's rigidity and structural strength. These machines are widely used in the manufacture of packaging drums for industries such as petroleum, chemicals, food processing, and pharmaceuticals.

Working Principle

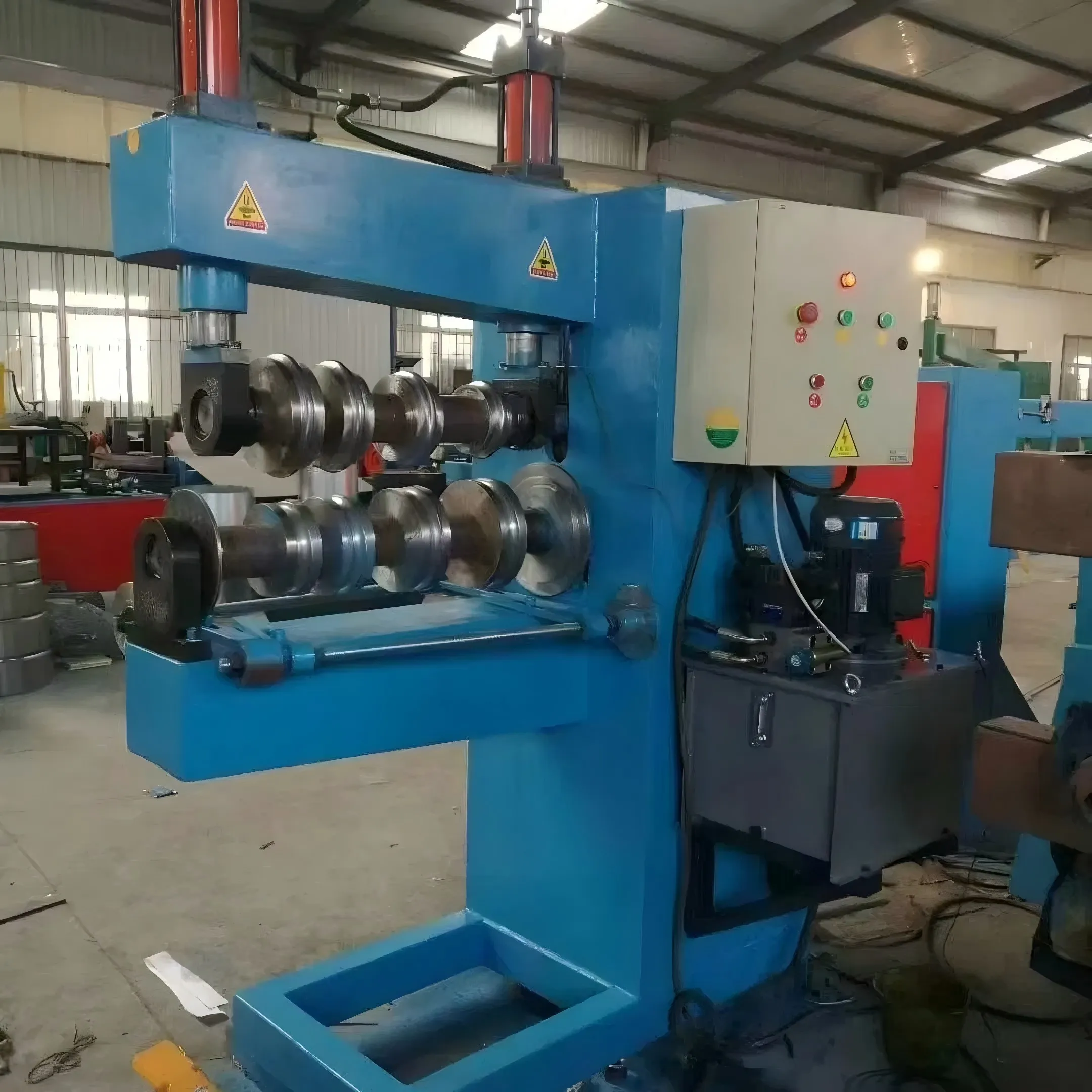

The core operating principle of the W-corrugation forming machine is based on cold roll forming technology. During operation, after the drum body has been flanged, a conveyor mechanism feeds it into the center of the corrugating machine. The clutch then engages, and the upper and lower corrugating rollers—actuated by a cam mechanism—press into the drum body. Friction at the contact interface causes the drum body to rotate synchronously with the rollers under pressure, inducing localized plastic deformation at the points of contact.

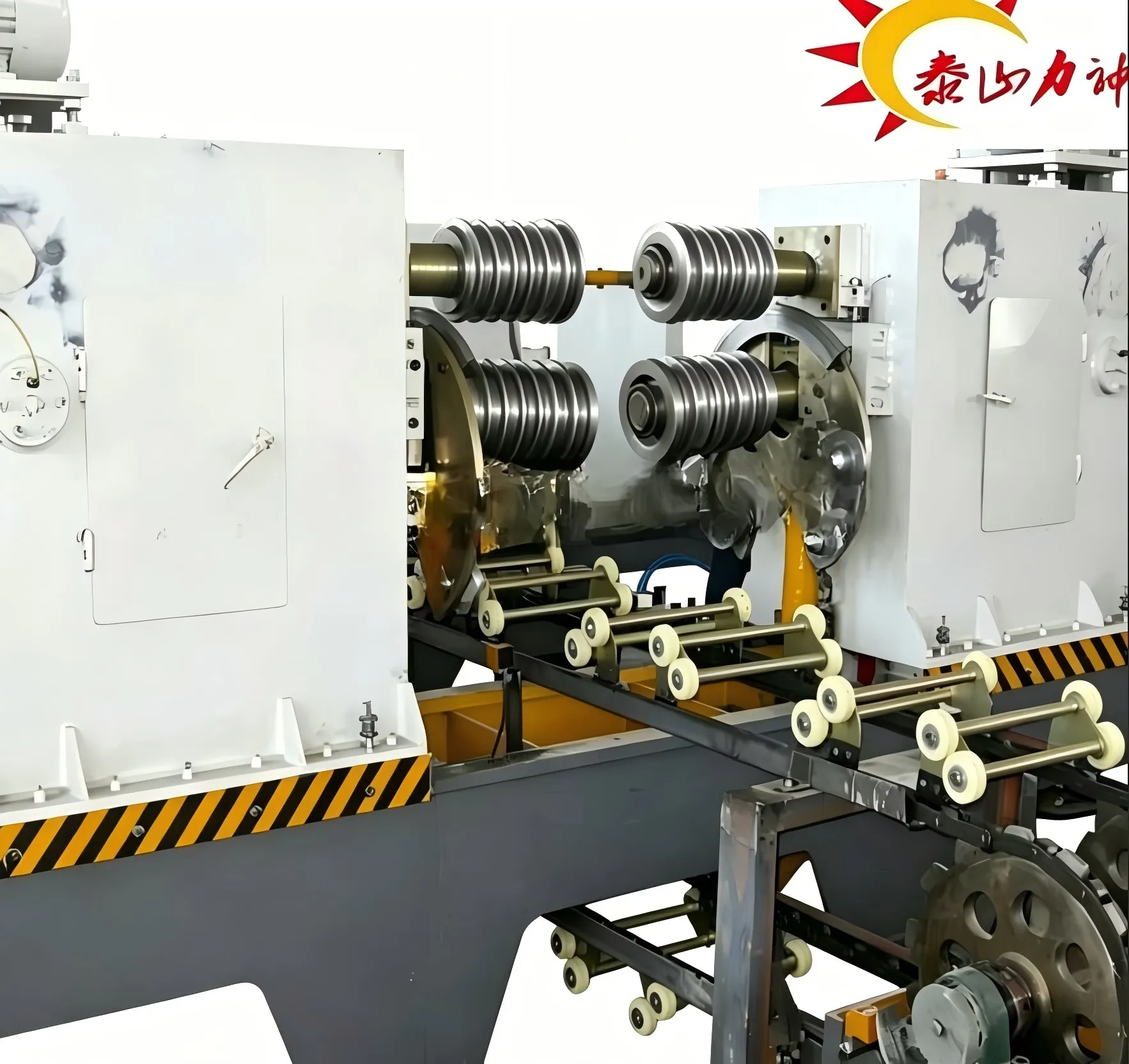

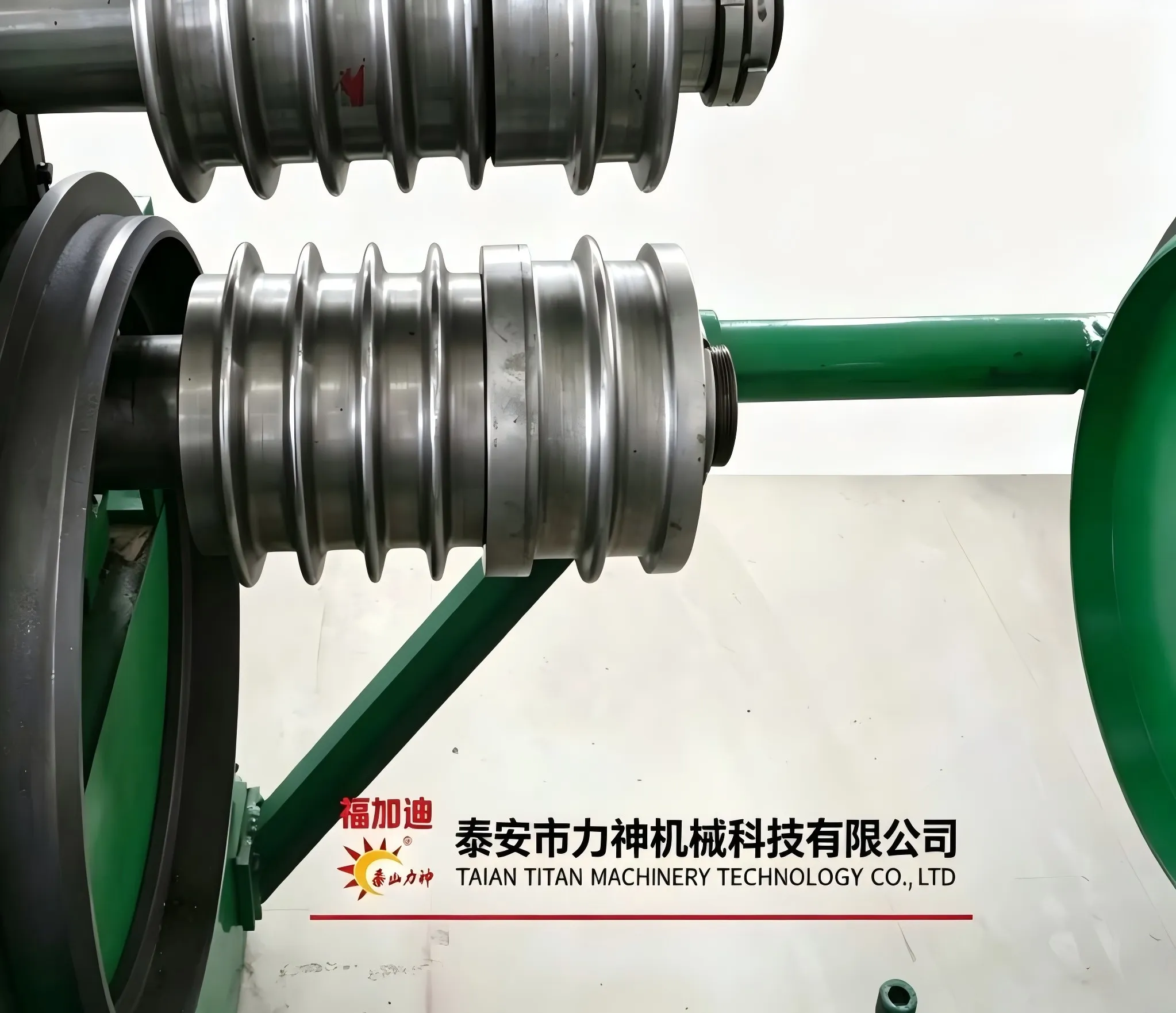

The upper and lower rollers act as corrugated formers, creating the corrugations through a profile-following motion; the forming action is the result of a complex combination of circumferential rotation, radial feed, and contour tracking. The primary advantage of this roll-forming method over expansion forming is that it ensures a gradual stress distribution within the deformation zone and preserves the cohesion of the material's grain flow, resulting in higher material strength in the deformed area. Regarding the drive system, the machine combines continuous rotary motion with reciprocating oscillating motion. Continuous rotation is achieved via belt, gear, and worm-gear drives, while the reciprocating oscillation is driven by a cam mechanism. The cam is powered by the main shaft through a speed reducer; typically, the cam rotates at 6–7 rpm, while the main shaft rotates at approximately 100 times that speed.

Structural Characteristics of the W-style Bead

The W-style bead consists of three contiguous sections:

• A central section: protruding outward beyond the drum's original outer diameter.

• Two side sections: recessed inward below the drum's surface.

This structure differs from the traditional single-outward-protruding standard rolling hoop. The W-style bead serves a dual purpose—structural reinforcement and ease of rolling: it enhances the drum's resistance to deformation while providing a rolling contact surface that facilitates handling and effectively protects the drum lid (on removable-lid models) from damage during rolling.

Workflow

The typical operating cycle of the W-Corrugation Forming Machine is as follows:

1. Loading: The flanged drum body is positioned between the upper and lower corrugation rollers by the conveyor line.

2. Positioning/Detection: A proximity switch detects that the drum body is in place and sends a signal to the controller.

3. Roller Engagement: The clutch engages, and the upper corrugation roller is pressed into the drum body under cam actuation.

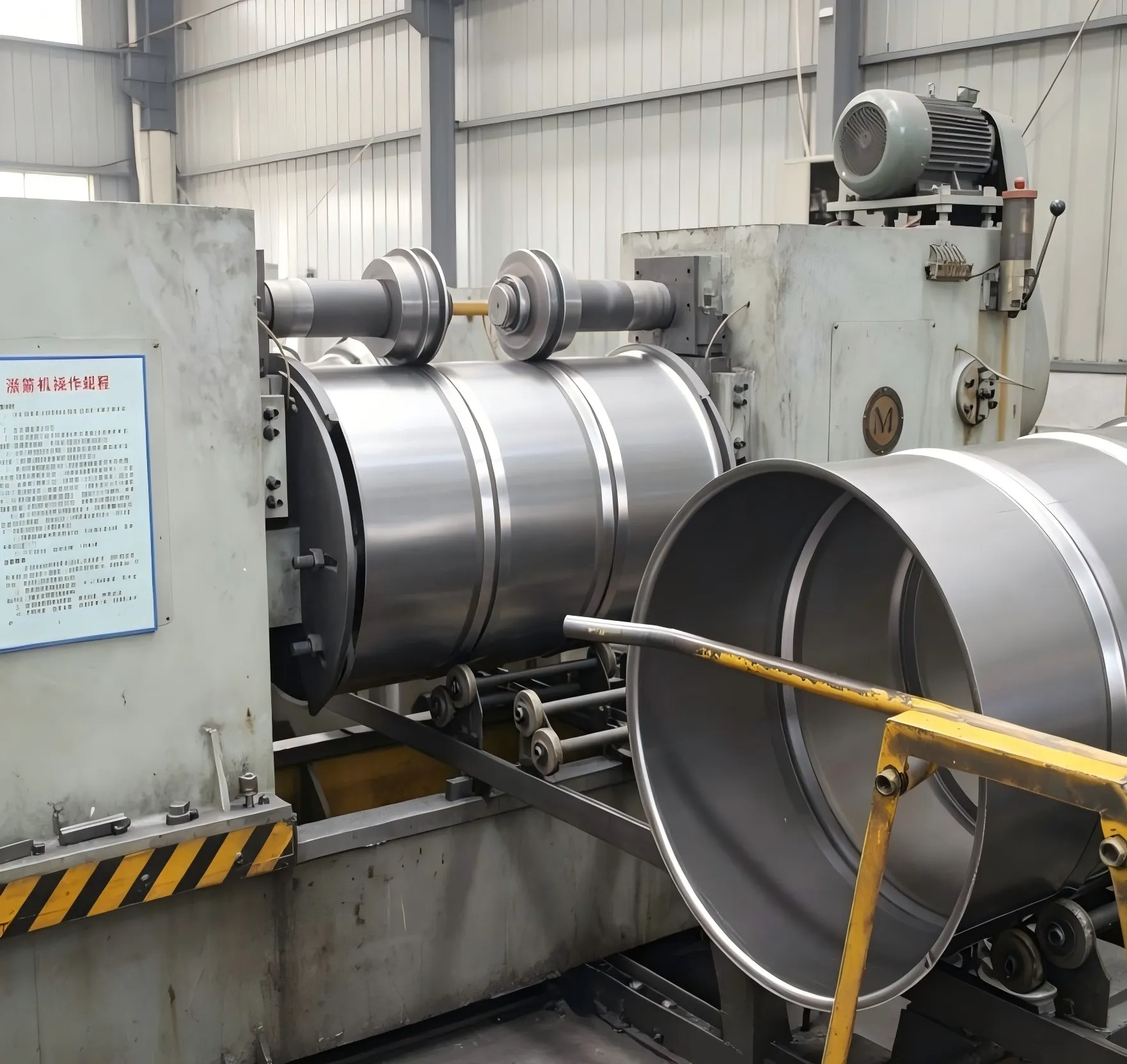

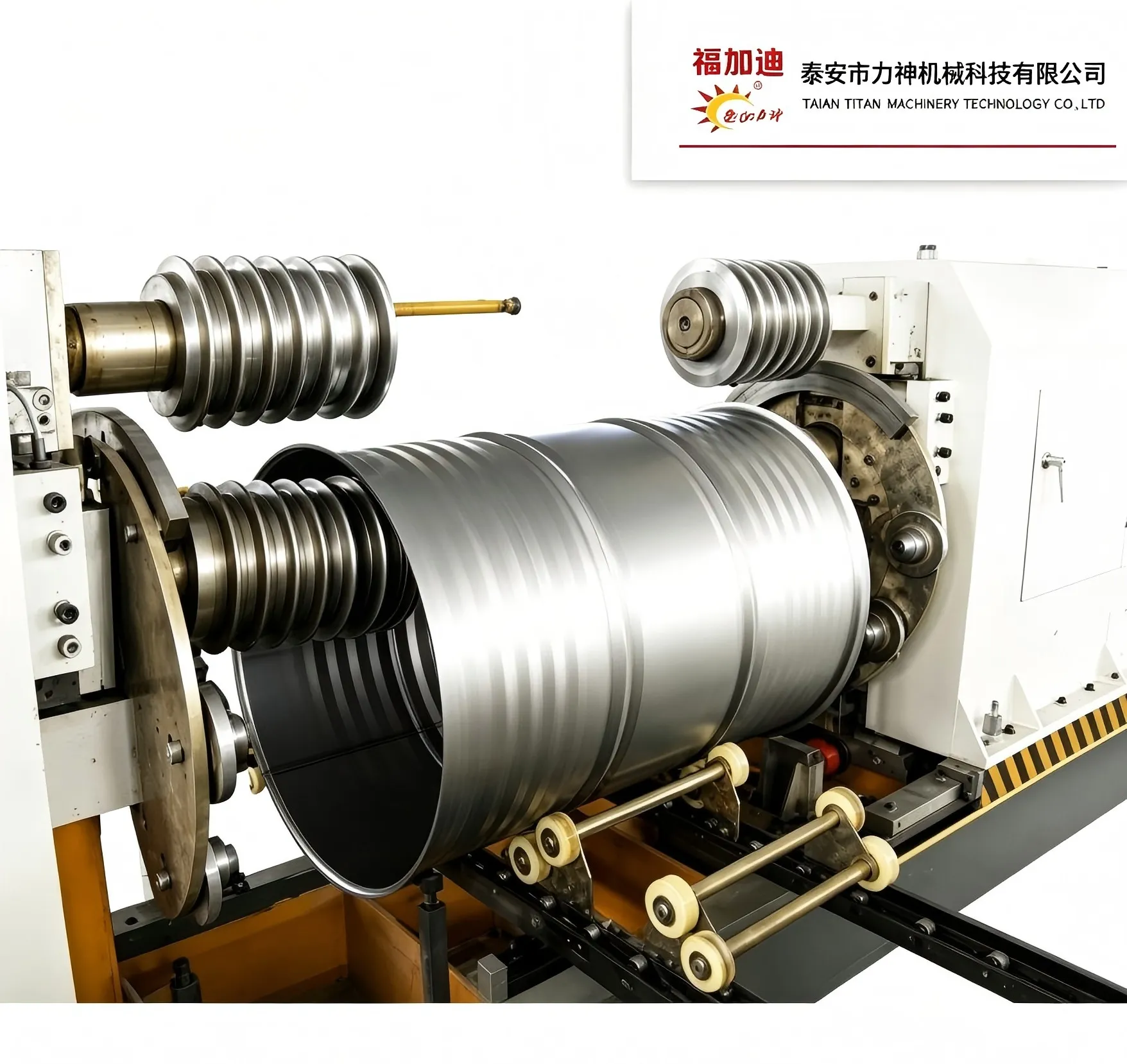

4. Rotary Forming: The upper and lower rollers rotate; friction at the contact surfaces drives the synchronous rotation of the drum body, forming the corrugations.

5. Finishing Stage: The cam remains stationary while the upper and lower rollers refine the shape of the drum body.

6. Roller Retraction: The cam retracts, the upper roller lifts via the return spring, and the rollers disengage.

7. Unloading: The conveyor mechanism transfers the corrugated drum body to the next process stage.

The cycle time for a single forming operation is approximately 3.8 seconds (excluding loading and unloading times). Adjusting for different corrugation positions or depths on the same drum size takes less than 5 minutes; changing and adjusting tooling for different drum sizes takes less than 10 minutes.

Equipment Advantages

High Production Efficiency: Standard production speeds range from 5 to 12 units per minute, accommodating production lines with varying capacity requirements.

Flexible Changeover: Rapid switching between different drum types and corrugation configurations is achieved by changing molds and adjusting parameters.

All-Mechanical Structure: Offers high reliability and low maintenance costs, making it suitable for 24/7 continuous production environments.

Consistent Quality: The cam-controlled upper roller mechanism ensures greater stability in speed and pressure compared to pneumatic cylinder systems, resulting in consistent processing quality.

Functional Versatility: Optional molds allow for diverse processing requirements—such as corrugation only, ISO-standard W-ribs only, or combinations of ISO ribs and multi-stage corrugation (3, 4, or 5 corrugations).

Industry Applications

The W-Corrugation Forming Machine is a core forming unit within steel drum production lines; corrugation processing typically takes place during the flanging and rib-expanding stage, following drum body welding.

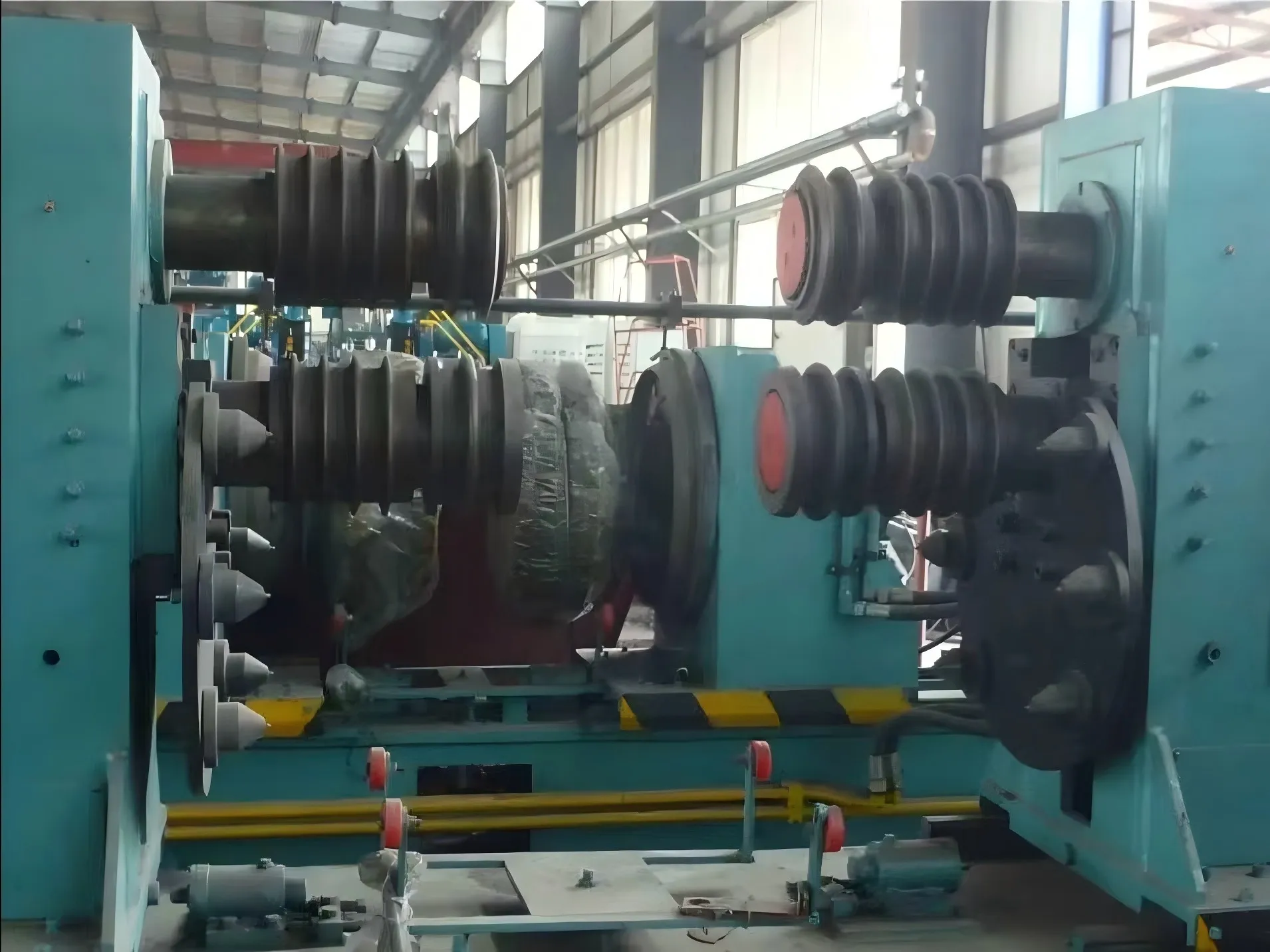

The machine can operate as a standalone unit or be integrated with flanging and rib-expanding machines into a three-machine combination line, enabling an integrated flanging-expanding-corrugating process that further

 boosts productivity.

Widely adopted by leading global steel drum manufacturers, this equipment is a standard component in the production of 55-gallon standard steel drums and industrial packaging drums.
