The First Step to a Perfect Steel Drum: Why Your Decoiler-Leveler Sets the Foundation

I've spent enough time in steel drum factories to know that most quality problems don't start at the welder or the seamer.

They start at the very front of the line—with the steel coil. If the steel isn't flat and clean when it enters the production line,

nothing else will be right. That's why the decoiling and leveling machine is one of the most important pieces of equipment

in your factory, even though it's often the most overlooked.

Here's the thing about steel coils. When steel comes from the mill, it's wound into a tight coil. That coiling process puts a lot

of stress on the metal, and when you unroll it, the steel has a natural tendency to curl back into its coiled shape. That's

called coil set. If you try to feed that curled steel into your forming machines without flattening it first, you're going to have

problems. The curling machine won't form a perfect cylinder. The welder won't get a consistent gap. And everything

downstream will be fighting that initial curl. A decoiling and leveling machine fixes that by unrolling the coil and passing it

through a series of rollers that bend the steel back and forth until it's flat.

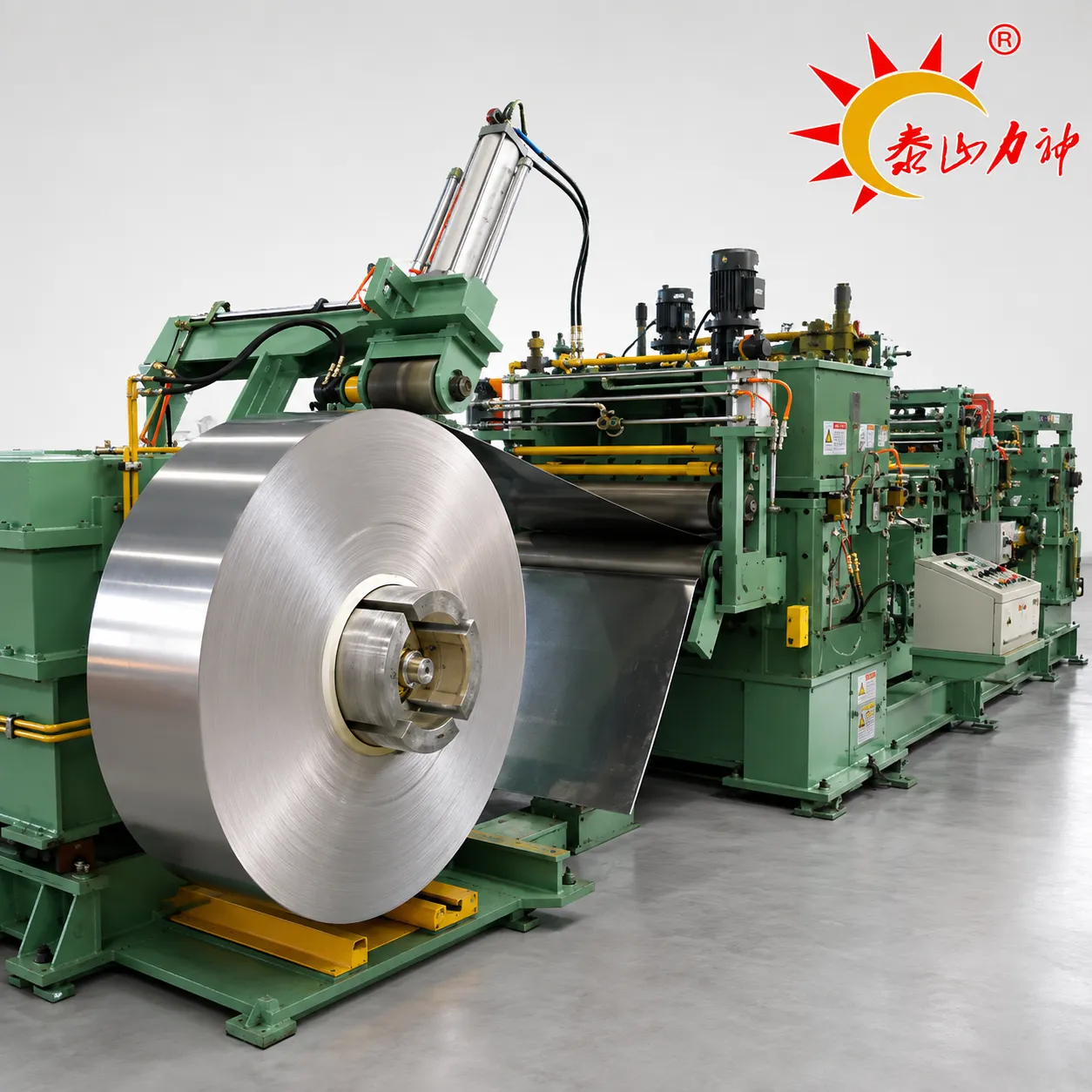

In a modern Steel Drum Production Line, the decoiling and leveling machine is usually a combined unit. It handles both the

uncoiling and the leveling in one continuous process. The machine starts with a pay-off reel that holds the steel coil and

rotates to feed the strip. From there, the strip moves through a series of leveling rollers that progressively remove the coil set.

Then it passes through a measuring device that tracks the length, and finally, it feeds into the shearing machine or the

forming press.

When you're choosing a decoiling and leveling machine for your steel drum line, there are a few key specifications to look at.

First, the coil capacity. You need a machine that can handle the coil weights and widths you're using. For standard 200-liter

steel drums, you'll be working with coils up to about 1,250mm wide and weighing up to 15 tons. Second, the thickness range.

You need a machine that can handle the steel thicknesses you're running, typically 0.6mm to 1.5mm for steel drums. Third,

the leveling accuracy. A good leveler should produce steel that's flat to within ±0.5mm per meter.

One thing that a lot of buyers overlook is the entry guide system. The steel strip needs to enter the leveling section perfectly

straight, or you'll get a crooked strip that jams the machine. A good decoiler-leveler will have an adjustable entry guide with

side rolls that keep the strip centered. I've seen factories lose hours of production time because the entry guide was

misaligned and the strip kept wandering.

Here's a practical tip: invest in a machine with a peeler or an assisted uncoiling system. The first few meters of steel from a

fresh coil have a tighter curvature than the rest of the coil, and they can be difficult to feed into the leveler. A peeler lifts the

leading edge and guides it into the leveling section, preventing jams and speeding up the coil change process.

Another thing to consider is the leveling roll configuration. The more leveling rolls a machine has, the flatter the steel will be

at the end. Entry-level machines might have just five or seven rolls, while high-end machines can have up to 21 rolls. For steel

drums, a machine with 11 to 13 leveling rolls is usually a good balance of cost and performance.

Regular maintenance is important for keeping your decoiling and leveling machine in good shape. The leveling rolls take a lot

of wear, and they need to be inspected and replaced periodically. Also, keep the feed rollers clean—steel dust and debris can

cause scratches and marks on your steel surface.

Your decoiling and leveling machine may be the least glamorous piece of equipment in your steel drum factory, but it's the

foundation of everything you do. If the steel is flat and clean when it enters the line, the rest of your machines have a fighting

chance. If it's not, you'll be fighting an uphill battle all the way to the seamer.
